Simple, Low Cost PFAS
Simple PFAS
・The simple PFAS (short parts stopper) was developed to assist the transfer when chucking becomes difficult (shoulder parts, short parts, etc.) during forging.
・In the transfer body, the PFAS unit is installed through the bracket. Because the transfer body’s movement has a drive source, timing adjustment is not needed, making it simple and low cost. It is possible to install this unit on every machine.
シンプルで低コストな簡易PFAS01

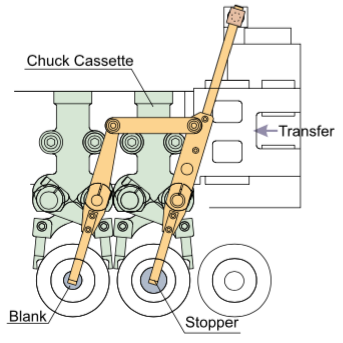

Fig.1 The stopper prevents the kicked out blanks from dropping.
シンプルで低コストな簡易PFAS02
Fig.2 While the chuck is transporting the blank to the next station, the stopper moves from the center of the die to the right side. The punch advances forward and forging begins.
Solution：
