Curved Wave Conveyor

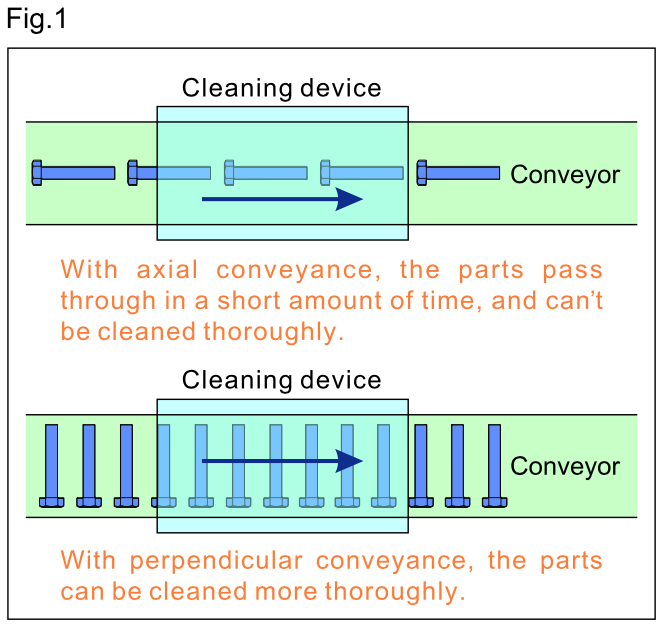

The precision parts forged by the former are conveyed out of the machine from the side of the former by an SP conveyor that prevents damage, then are conveyed to the front or back of the former and will be packed in boxes after cleaning. At that time there was an issue with parts with a long axis not having enough cleaning time when passing through the cleaning device since they were conveyed axially. (Fig.1)

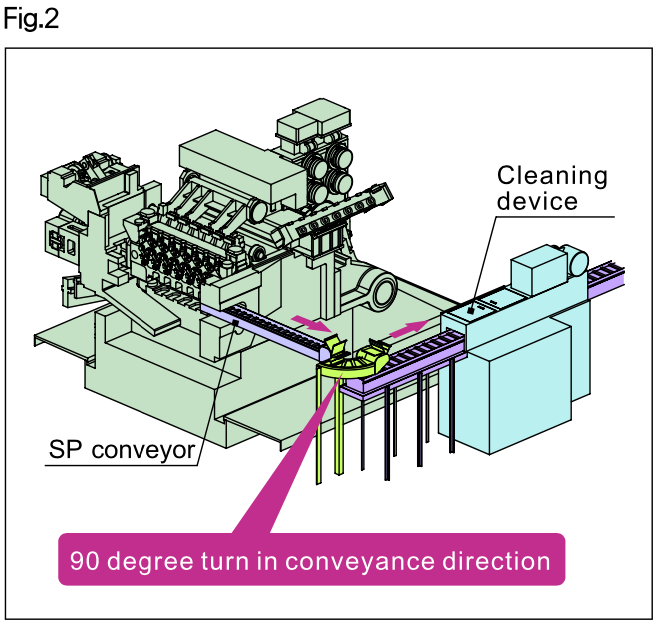

The curved wave conveyor turns the parts 90 degrees while conveying them. (Fig.2)
This way, the parts can be cleaned more thoroughly in the cleaning device.

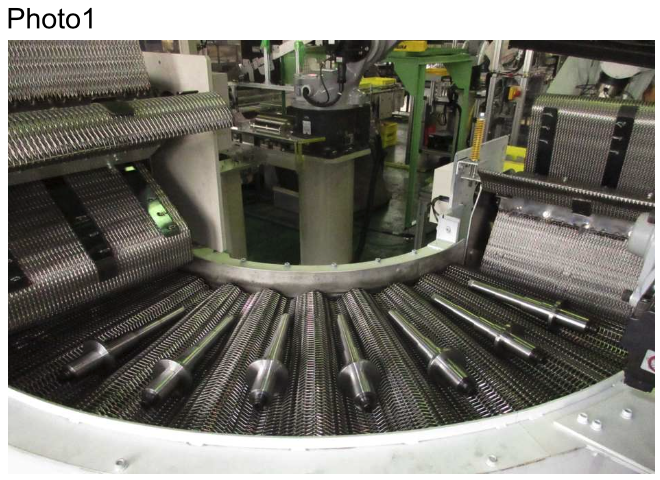

There is centrifugal force at work when parts are conveyed along the curve but damage can be prevented since there is no rolling or parts colliding, because each part fits into the hollow of the wave.

Utility Model Registration: 3226829
Name of Device: Curved Wave Conveyor
Technology Information:
